FLUX LINKAGE PLATES FOR TRIUMPH 675

Cut from 4.0–4.5mm thick 5083-H321 alloy plate by abrasive water jet (Google for your area)

10.0mm diameter holes

7.0mm of material around the holes (implies a 12.0mm radius of the outside curves)

18.0mm material width for the cross-beams between the holes

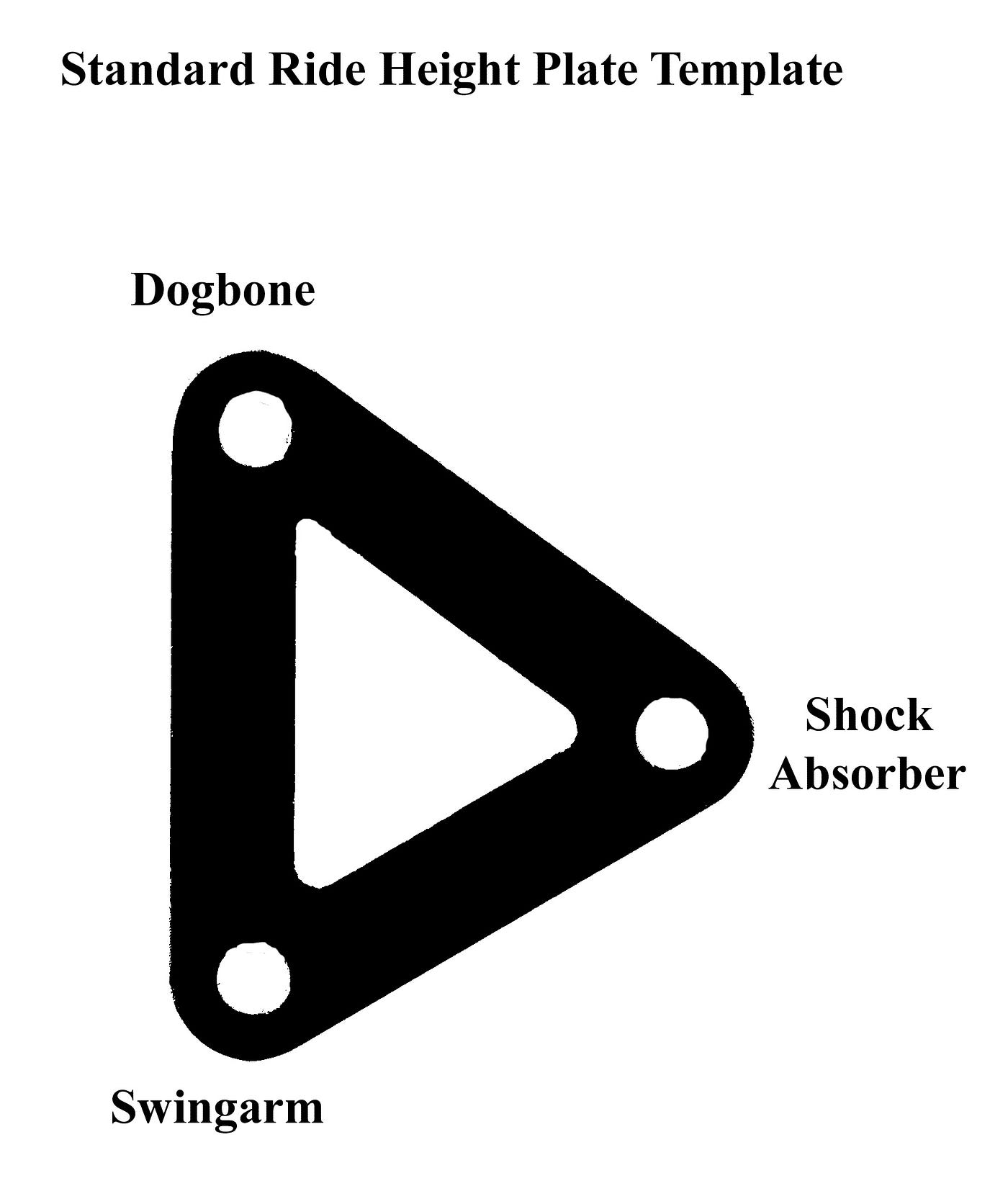

A = Distance from Shock Unit Pivot to Swing-Arm

B = Distance from Shock Unit Pivot to Dog-Bone

C = Distance from Dogbone to Swing-Arm

A = 69.5mm

B = 74.0mm

C = 79.0mm

--

--
